In the paper product manufacturing industry, purchasing an advanced, high-speed paper cup forming machine (such as PMC or DEBAO) is only half the battle. Many cup manufacturers face frustrating issues once production begins: wrinkled cup bodies, leaking bottoms, or paper becoming brittle and cracking during heat sealing.
More often than not, this is not a machine malfunction. It is a mismatch between your poly coated paper (cupstock) and your forming machine. As a leading global manufacturer of paper cup raw materials, Kindeal Paper will break down how to choose the perfect poly coated paper based on your machine specifications and application scenarios.

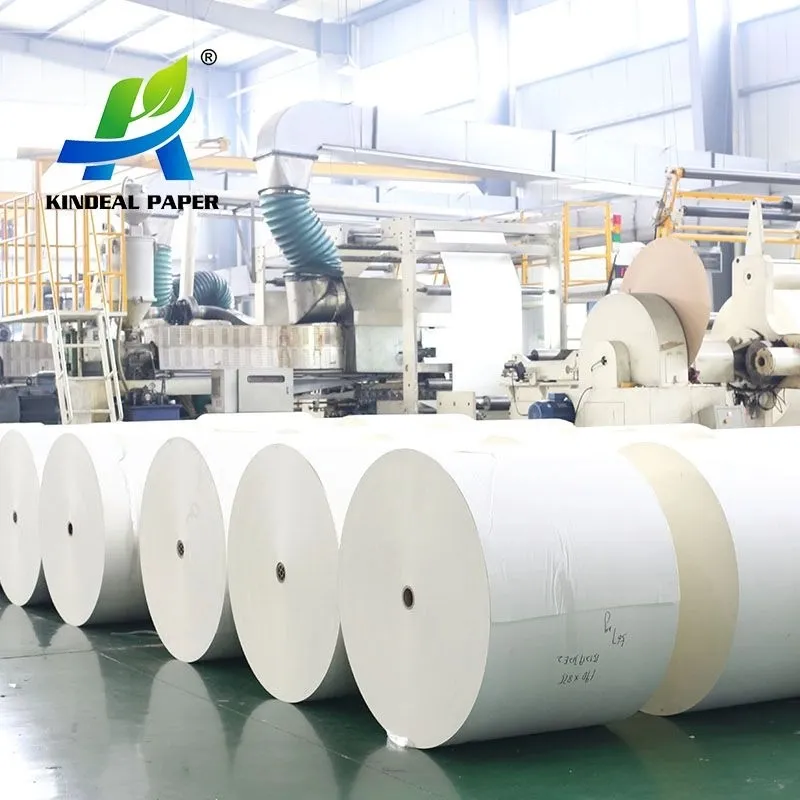

Poly Coated Paper Raw Material Roll
The operating speed of your paper cup forming machine—whether it is a medium-speed machine (60-80 pcs/min) or a high-speed machine (120-150+ pcs/min)—places extremely strict requirements on the basis weight (GSM) and stiffness of the base paper.
Medium & Low-Speed Machines: These machines are relatively forgiving regarding paper quality. However, if the paper lacks sufficient stiffness, the cup fans can easily bend during automatic feeding, leading to frequent machine jamming.
High-Speed Forming Machines: During high-speed blanking and rim rolling, the paper must withstand immense mechanical forces within milliseconds. This requires the cupstock to have not only a proper GSM but also exceptional Tensile Strength in both Machine Direction (MD) and Cross Direction (CD). If the paper is too brittle or lacks stiffness, it will crack during the rim-rolling process (Rim Cracking).
Kindeal Paper's Insight: Scientifically matching the GSM to the cup size is critical. For instance, standard 2oz to 7oz sampling/tasting cups typically use 190-210 gsm base paper, whereas 12oz to 16oz hot coffee cups require 260-320 gsm to ensure a firm grip without deformation.
Buyers must determine their poly coating configuration based on whether the end market is for "hot drinks" or "cold drinks." This choice directly dictates the sealing technology your forming machine must utilize.
Coating Type | Structure | Best Applications | Matched Machine Sealing Technology |
Single PE Coated | PE coated on the inner side (1 Side) | Hot coffee, hot tea, hot soup bowls | Heater/Hot Air Sealing. The inner PE layer melts to seal the seam. |
Double PE Coated | PE coated on both sides (2 Sides) | Iced cola, chilled beverages, ice cream bowls | Ultrasonic Sealing. Essential for double PE; ultrasonics provide precise fusion without scorching the outer PE layer. |
Why must cold drinks use Double PE?
When a chilled beverage is poured into a cup, moisture from the air condenses into water droplets on the outer wall (condensation). If single PE paper is used, the outer raw paper will rapidly absorb this moisture and soften, causing the cup to collapse. The outer PE layer of Double PE paper acts as a perfect barrier against condensation, keeping the cup sturdy.
The PE coating layer (typically 12g, 15g, 18g, or 20g gsm) acts as the "waterproof armor" of the paper cup. Choosing the right coating thickness directly impacts sealing quality and your overall procurement costs.
Too Thin (< 12g): At high machine speeds, the heat-sealing time window is incredibly short. A PE layer that is too thin may not melt and level out sufficiently. This creates microscopic gaps in the side seam and bottom rolling, leading to batch leakage.
Too Thick (> 20g): While it offers excellent leak proofing, it unnecessarily increases your purchasing cost per ton. Furthermore, high-speed machines may require higher sealing temperatures, which can scorch the printed graphics on the paper surface.
Depending on your clients' brand positioning, Kindeal offers three mainstream types of base paper, each performing uniquely on forming machines:
Wood Pulp Cupstock Board: The most popular choice. It features high whiteness and a smooth surface, running flawlessly on almost all automatic cup machines while delivering vibrant print colors.
Kraft Poly Coated Paper: Delivers a natural, vintage, and eco-friendly aesthetic that coffee brands love. Kraft paper has longer fibers, providing excellent toughness and outstanding performance during rim rolling.

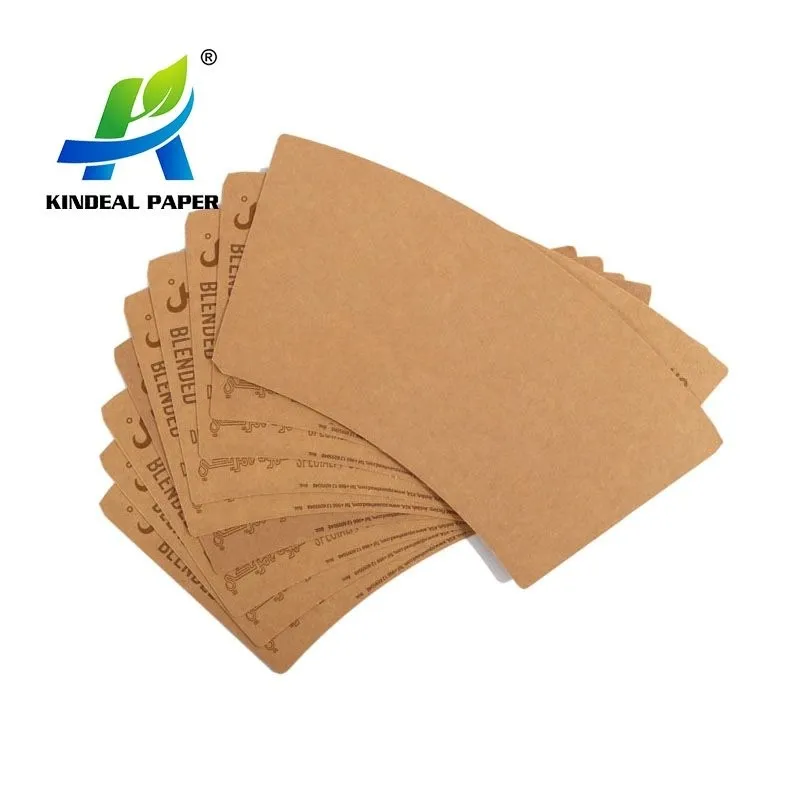

190gsm-350gsm Kraft Poly Coated Paper
High-Gloss Coated Paper: The surface undergoes a special coating process, making it ideal for high-precision, multi-color branding. Because the surface is smoother, you may need to adjust the suction cup pressure at the machine's feeding end.
Before feeding poly coated paper into your forming machines, you should evaluate which product format offers the highest production efficiency for your facility:
Jumbo Rolls & Bottom Rolls: If your factory is equipped with flexographic/gravure printing presses and die-cutting machines, purchasing jumbo rolls is the most cost-effective method.
150gsm-250gsm Paper Cup Bottom Roll

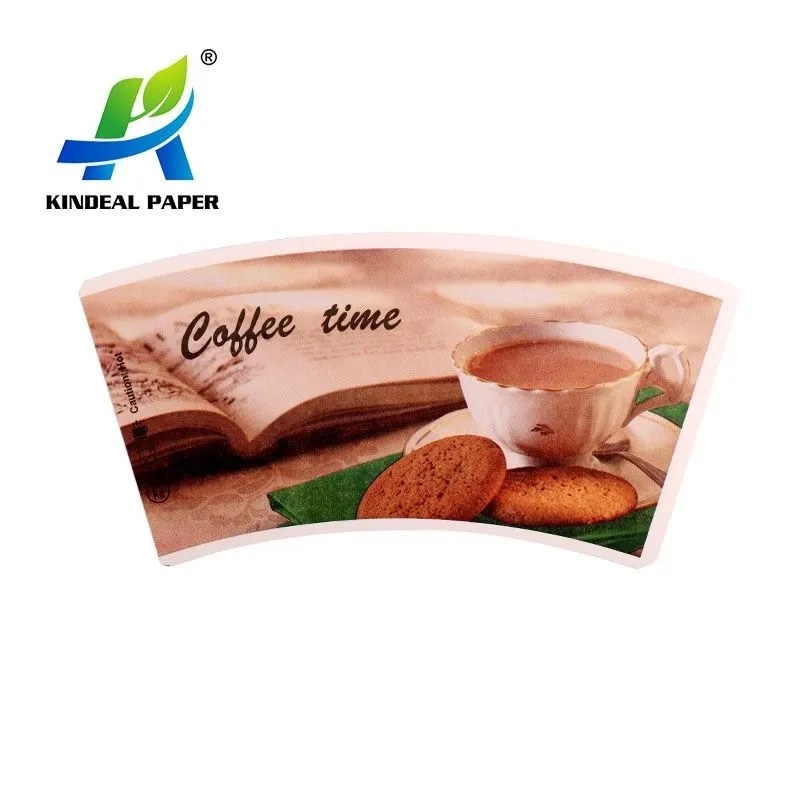

Pre-cut Paper Cup Fans: If you want to skip the heavy capital investment in printing and die-cutting machinery, or want to eliminate raw material wastage from trimming, purchasing Kindeal's pre-printed and precisely die-cut cup fans is your best strategy. They are ready to be fed directly into your cup forming machines, maximizing your output rate from day one.
Choosing the right poly coated paper isn't about finding the highest GSM or the most expensive option—it is about achieving perfect compatibility with your paper cup forming machines.
As a professional manufacturer, Kindeal Paper not only supplies Single/Double PE coated paper, kraft poly paper, and high-gloss coated paper, but also offers next-generation biodegradable PLA coated paper to meet strict environmental regulations.
Want to test your machine compatibility?
Contact the Kindeal technical team today. We can provide free samples of base paper or pre-cut cup fans for your trial runs.
